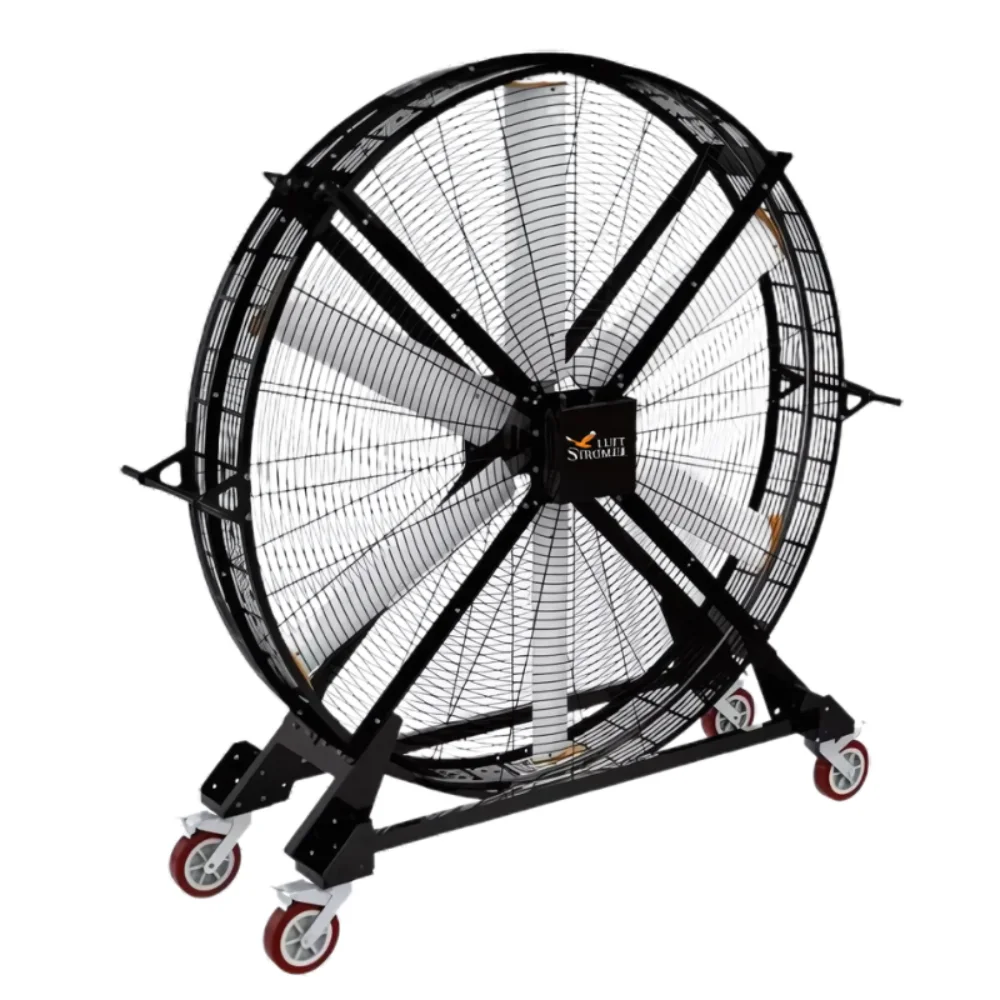

Typhoon
TYPHOON mobile pivot HVLS industrial fans are very unique, specially designed for premises where roof mounting is impossible. These fans provide extensive coverage with an air discharge up to 30 feet. Their distinctive frame with castor wheels provide added versatility to deploy them even for temporary usage in exhibition domes or outdoors.
Technical Specifications
| MODEL | TYPHOON LS61PFF |
|---|---|
| Fan Diameter (ft) | 6 |
| Type of Fan | PMSM FLOOR FAN |
| Manual Fan Movement | MOVABLE WITH WHEELS |
| Manual Fan Swing | 15°-20° |
| Protection Rating | IP 66 |
| Blade Finish | ANODISED SILVER |
| Blade Material | 6061 T6 ALUMINIUM ALLOY |
| Number of Blades | 6 |
| Motor Type | PMSM BRUSHLESS MOTOR |
| Power (W) | 950 WATTS |
| Power in Line / Voltage (V) | 400 V AC |
| Drive Type | VACON |
| Speed (RPM) | 250 |
| Speed Control Method | ANALOG INPUT 0-10 V |
| Coverage Area (sq.ft) | 2,000 |
| Air Flow (cfm) | 56,000 |
| Noise Level | < 55 db |
| Service Interval | 10,000 hours (for 24×7 Usage) |
