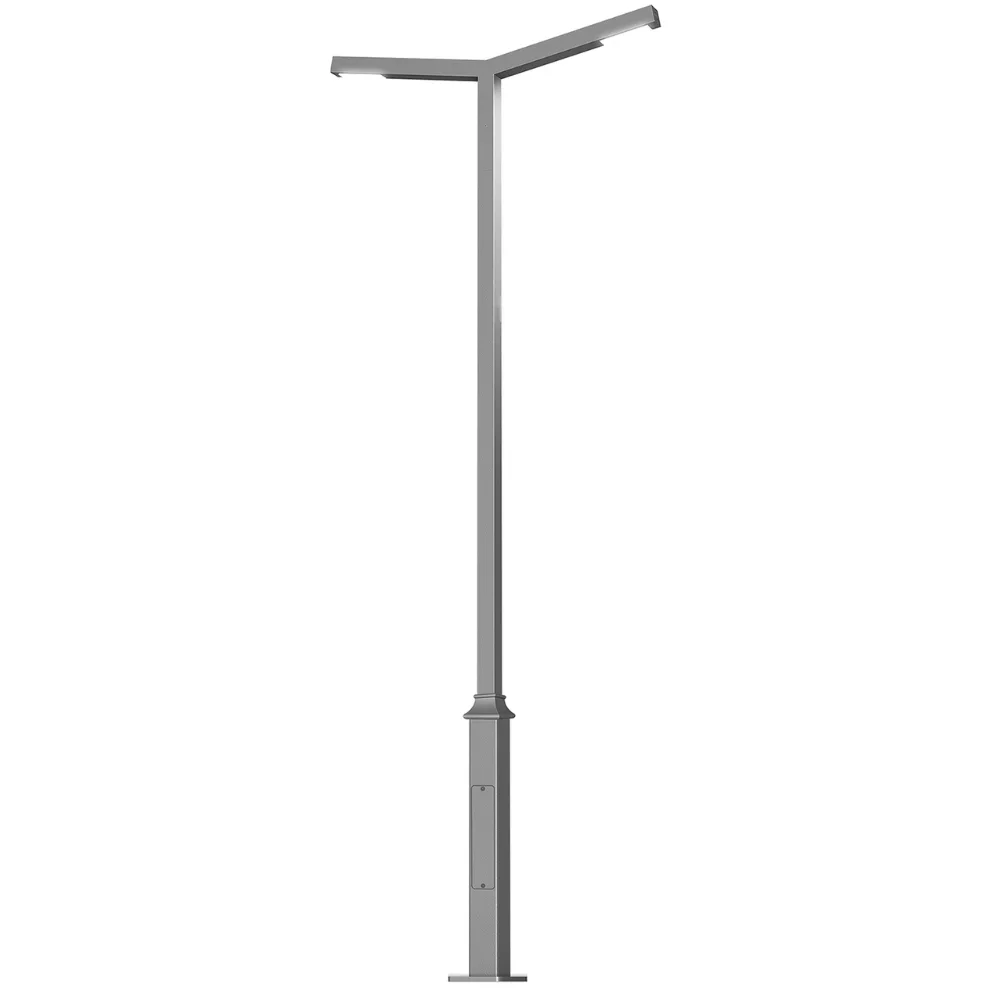

OLS Sleek Square Street Light Pole – Sq.60×60 Series

Sleek Square Street Light Pole – Sq.60×60 Series is a contemporary design that is both timeless and unique in its impression.
Compact without visible mounting equipment and optimised integration,Sleek Square Street Light Pole – Sq.60×60 Seriesis in perfect continuity with the geometric lines of the square column.
These assemblies are ideal for surroundings of contemporary architectural constructions.

Product Description
• Integrated with LED Modules.
• Polycarbonate optical lens.
• Protection class IP65.
• Integral power supply.
• Earth connection.
• Safety class I.
• CE- Conformity mark.
• BIS – Conformity mark.
• Pole made of Mild Steel.
• Pole design parameters vary depending on the type of bracket and loading factor.
• All pole sections are welded using special v groove technique by certified welders using high end MIG welding processes.
• Built-in control box with cast aluminium service door and safety rope.
• The control gear tray is prewired with MCB,terminal connectors for loop-in / loop-out arrangement.
• The foundation bolt holes in the base plate are designed to be elongated for fine adjustments / alignment of the pole during installation.
• Base plate made of steel grade E250 & foundation bolt of grade 4.6.

Product Benefits
• Quick installation and low assembly costs.
• A wide range of Pole heights and bracket options to meet various lighting requirements.
• Functionally versatile,strong and stable with sound engineering.
• Innovative Design options to provide Visual integration with the environment.
• High Brightness, LED Light source do not pose any environment risks.
• Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.
• Customised for your delight : Creating the entire product portfolio – Right from concept to completion,merging the best technology and practices in lighting.

Area of Application
Street Lighting,Smaller Roadways,Expressways,Private driveways,Residential Area Lighting,Courtyards,Public area lighting like parks & Squares.

Installation
Surface mounted with base plate and fitted on a pre formed foundation.

Available Finish
Coated with zinc rich primer and finished using environmentally stable polyurethane based paint / Pure polyester powder coated of desired colour.
• Graphite grey
• Anthracite grey
• Black.
